Creating interactive maps with CPAL styling using mapgl

Interactive maps are essential for exploring geographic data and communicating spatial patterns. The cpaltemplates package integrates with the mapgl package to create professional, CPAL-branded web maps using Mapbox GL JS.

mapgl Maps in Quarto

mapgl maps are interactive HTML widgets that don’t render in static Quarto documents. The examples below show screenshots of the output. For interactive maps, use mapgl in Shiny applications or render your Quarto document as an HTML file with format: html.

Setup

Mapbox Access Token

Interactive maps require a Mapbox access token. Mapbox offers a generous free tier for development and small-scale use.

Create a free account at mapbox.com
Navigate to Account > Tokens
Copy your Default public token (starts with pk.)
Add it to your .Renviron file:

# Open your .Renviron file
usethis::edit_r_environ()

# Add this line (replace with your actual token):
# MAPBOX_PUBLIC_TOKEN="pk.your_token_here"

# Save the file and restart R

Verify Your Token

After restarting R, verify your token is set:

Sys.getenv("MAPBOX_PUBLIC_TOKEN")

Basemap Themes

Initialize a Mapbox GL map with cpal_mapgl(). Four CPAL-branded basemap themes are available:

Theme	Best For
`"light"`	Most data visualizations, reports (default)
`"dark"`	Dashboards, dark mode applications
`"satellite"`	Land use analysis, geographic context
`"minimal"`	Dense data overlays, monochrome aesthetic

Light Theme (Default)

Best for most data visualizations and reports:

Show code

cpal_mapgl() |>
  fit_bounds(nc)

CPAL light theme basemap — Light theme basemap

Dark Theme

Ideal for dashboards and dark mode applications:

Show code

cpal_mapgl(theme = "dark") |>
  fit_bounds(nc)

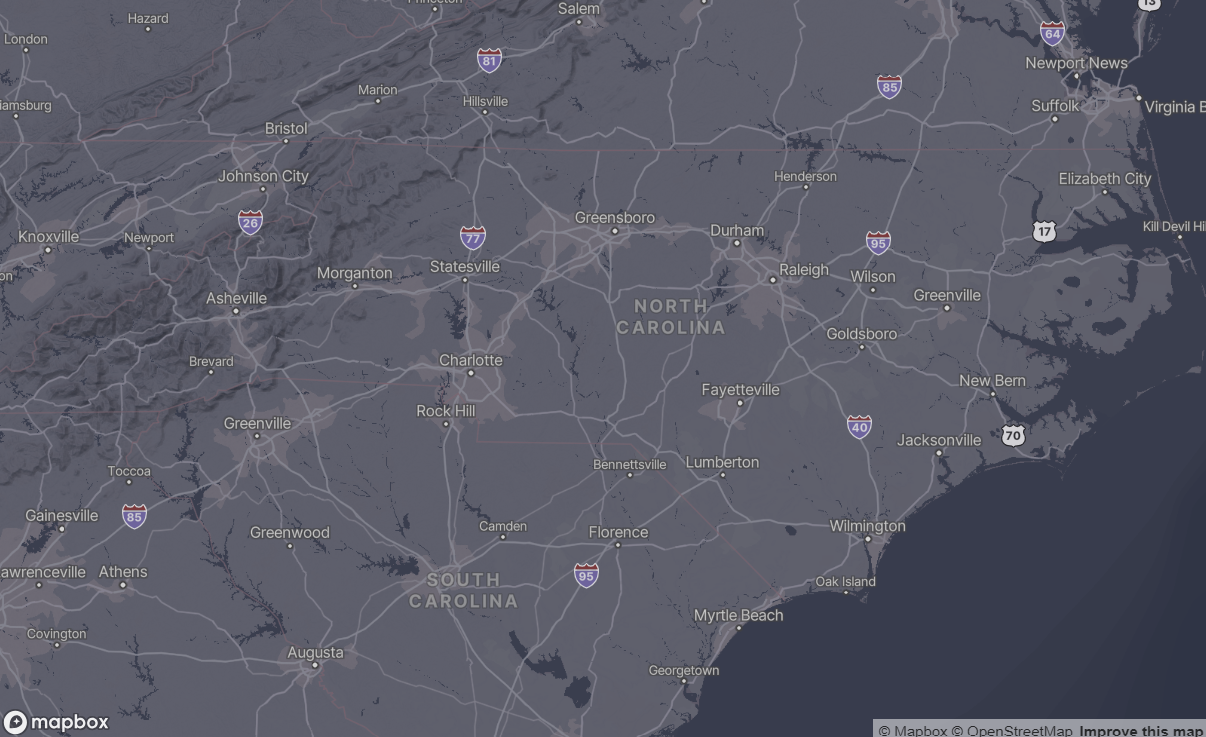

CPAL dark theme basemap — Dark theme basemap

Choropleth Maps

Choropleth maps shade regions based on data values. Use add_fill_layer() with interpolate_palette() for continuous color scales.

Basic Choropleth

Show code

cpal_mapgl() |>
  add_fill_layer(
    id = "counties",
    source = nc,
    fill_color = "#008097",
    fill_opacity = 0.7,
    fill_outline_color = "#FFFFFF",
    popup = "NAME",
    tooltip = "NAME"
  ) |>
  fit_bounds(nc)

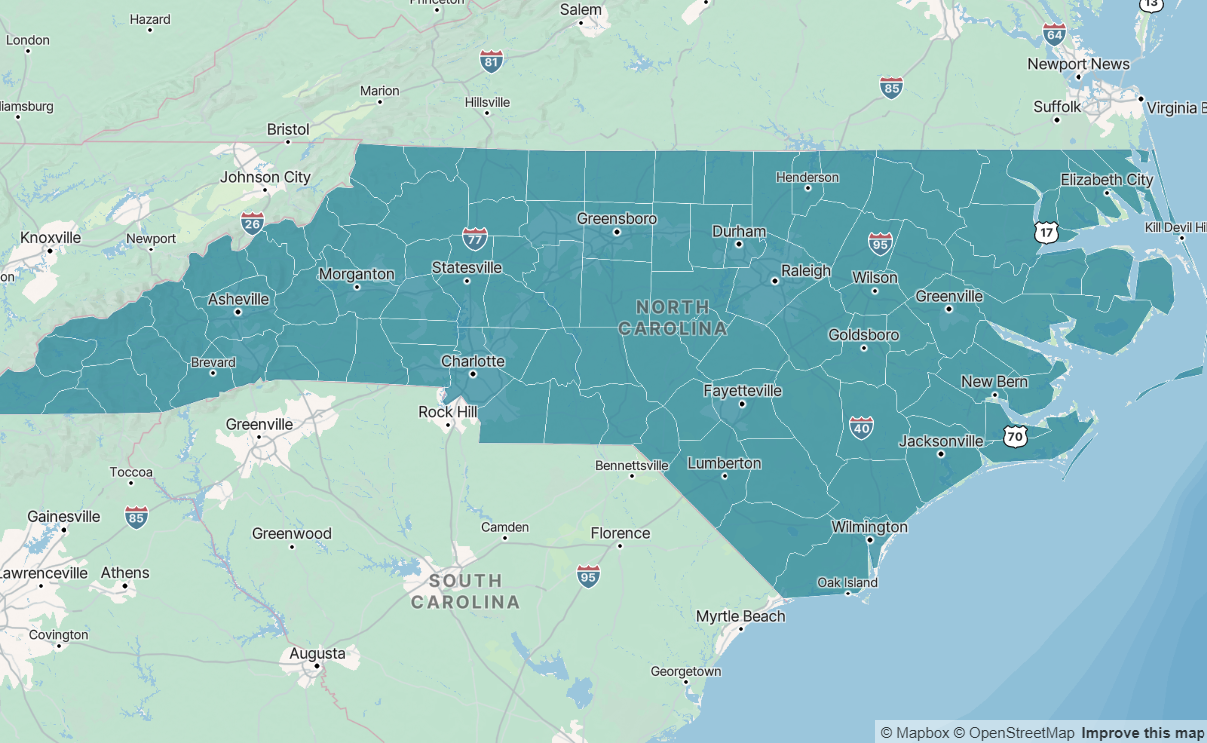

Choropleth map with CPAL teal fill color — Basic choropleth with single CPAL color

With Color Scale and Styled Legend

For continuous data, use interpolate_palette() with CPAL sequential colors and cpal_legend_style() for branded legends:

Show code

# Get CPAL sequential palette
seq_colors <- cpal_colors("midnight_seq_5")

# Create continuous color scale
color_scale <- interpolate_palette(
  data = nc,
  column = "poverty_rate",
  method = "quantile",
  n = 5,
  colors = seq_colors
)

# Apply to map with styled legend
cpal_mapgl() |>
  add_fill_layer(
    id = "poverty",
    source = nc,
    fill_color = color_scale$expression,
    fill_opacity = 0.7,
    fill_outline_color = "#FFFFFF",
    popup = "popup_html",
    tooltip = "NAME"
  ) |>
  add_legend(
    "Poverty Rate (%)",
    values = get_legend_labels(color_scale, digits = 1),
    colors = get_legend_colors(color_scale),
    type = "continuous",
    style = cpal_legend_style()
  ) |>
  fit_bounds(nc)

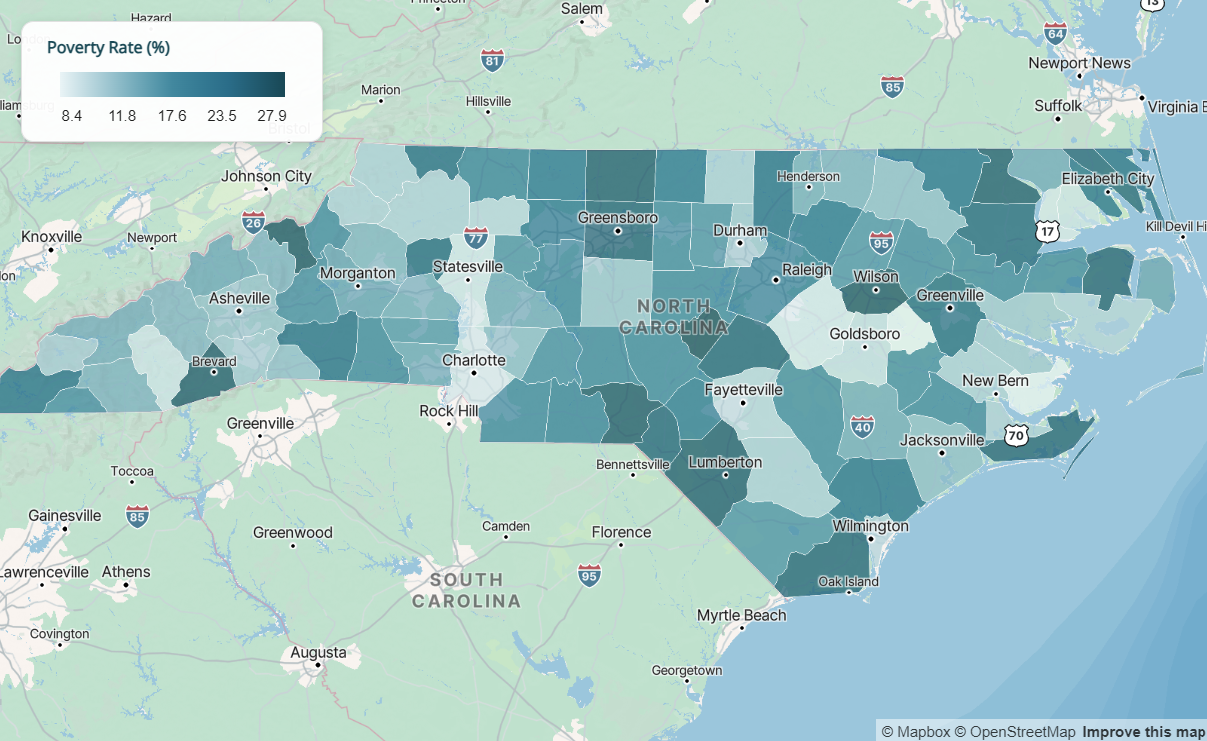

Choropleth map with midnight sequential color scale and styled legend — Choropleth with CPAL sequential colors and styled legend

Classification Methods

Method	Use When
`"quantile"`	Data is skewed; want equal counts in each bin
`"equal"`	Data is evenly distributed; want equal-width bins
`"jenks"`	Want natural groupings that minimize within-group variance

Point Maps

Use add_circle_layer() for point data. Supports color encoding, size encoding, and clustering.

Basic Points

Show code

cpal_mapgl() |>
  add_fill_layer(
    id = "background",
    source = nc,
    fill_color = "#EBEBEB",
    fill_outline_color = "#FFFFFF"
  ) |>
  add_circle_layer(
    id = "locations",
    source = sample_points,
    circle_color = "#E86A50",
    circle_radius = 8,
    circle_opacity = 0.8,
    circle_stroke_color = "#FFFFFF",
    circle_stroke_width = 2,
    popup = "name"
  ) |>
  fit_bounds(nc)

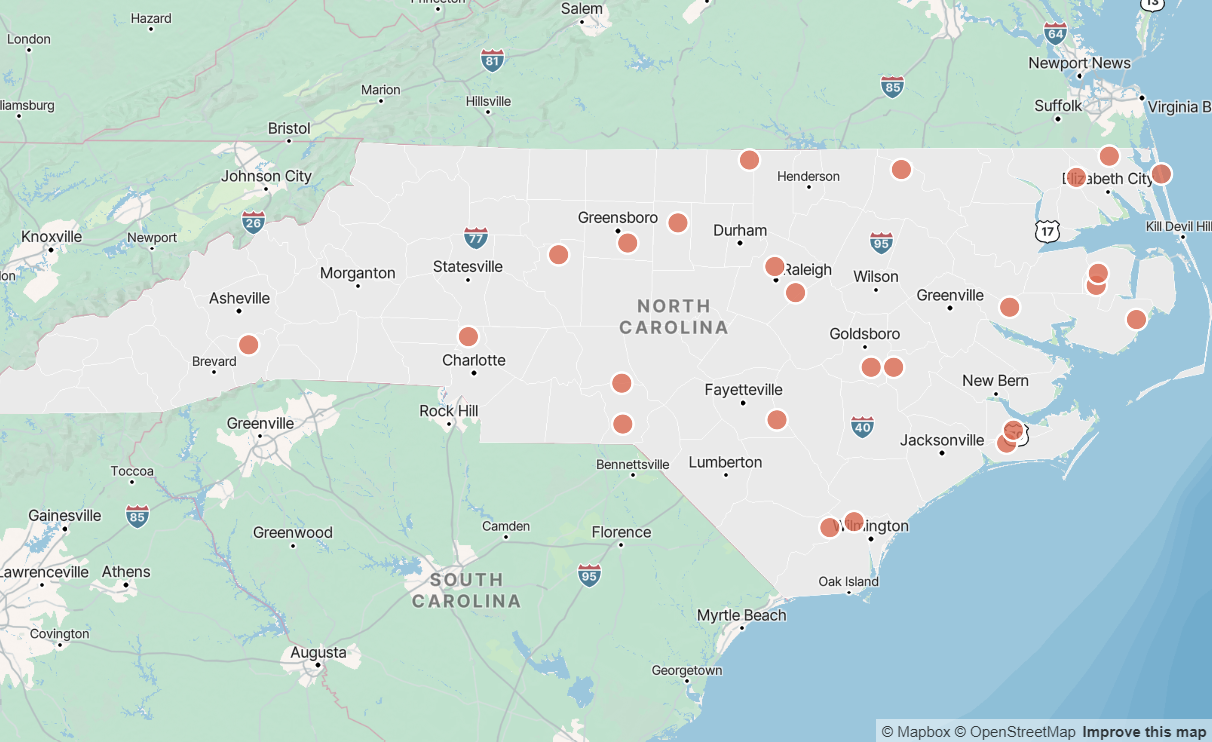

Point map showing locations as coral circles on gray background — Basic point map with CPAL coral circles

Colored by Category

Show code

# Create color expression for categories
category_colors <- list(
  "match",
  list("get", "category"),
  "Type A", "#004855",
  "Type B", "#E86A50",
  "Type C", "#5A8A6F",
  "#999999"
)

cpal_mapgl() |>
  add_fill_layer(
    id = "background",
    source = nc,
    fill_color = "#EBEBEB",
    fill_outline_color = "#FFFFFF"
  ) |>
  add_circle_layer(
    id = "locations",
    source = sample_points,
    circle_color = category_colors,
    circle_radius = 8,
    circle_opacity = 0.9,
    circle_stroke_color = "#FFFFFF",
    circle_stroke_width = 2,
    popup = "name",
    tooltip = "category"
  ) |>
  add_legend(
    "Category",
    values = c("Type A", "Type B", "Type C"),
    colors = c("#004855", "#E86A50", "#5A8A6F"),
    type = "categorical",
    style = cpal_legend_style()
  ) |>
  fit_bounds(nc)

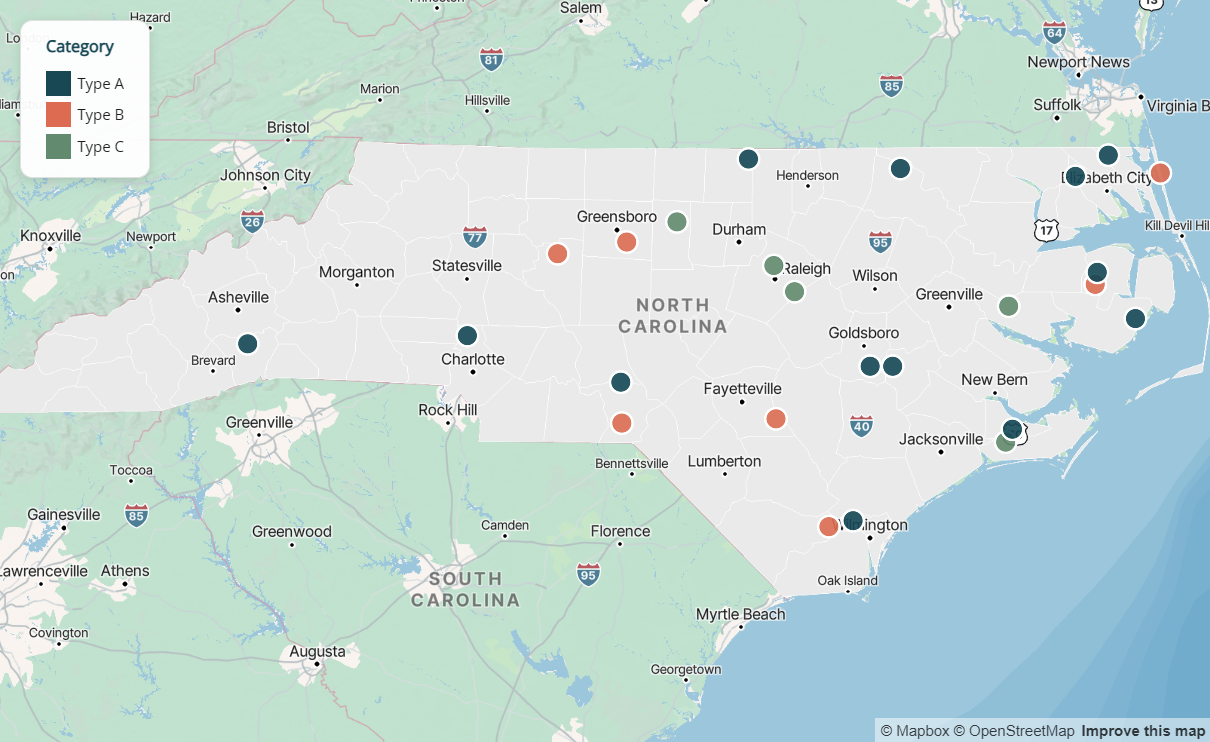

Point map with points colored by category using CPAL colors — Points colored by category with styled legend

Sized by Value

Encode a numeric variable in circle size:

Show code

cpal_mapgl() |>
  add_fill_layer(
    id = "background",
    source = nc,
    fill_color = "#EBEBEB",
    fill_outline_color = "#FFFFFF"
  ) |>
  add_circle_layer(
    id = "locations",
    source = sample_points,
    circle_color = "#004855",
    circle_radius = list(
      "interpolate", list("linear"),
      list("get", "value"),
      100, 5,
      500, 12,
      1000, 20
    ),
    circle_opacity = 0.7,
    circle_stroke_color = "#FFFFFF",
    circle_stroke_width = 1,
    popup = "name",
    tooltip = "value"
  ) |>
  fit_bounds(nc)

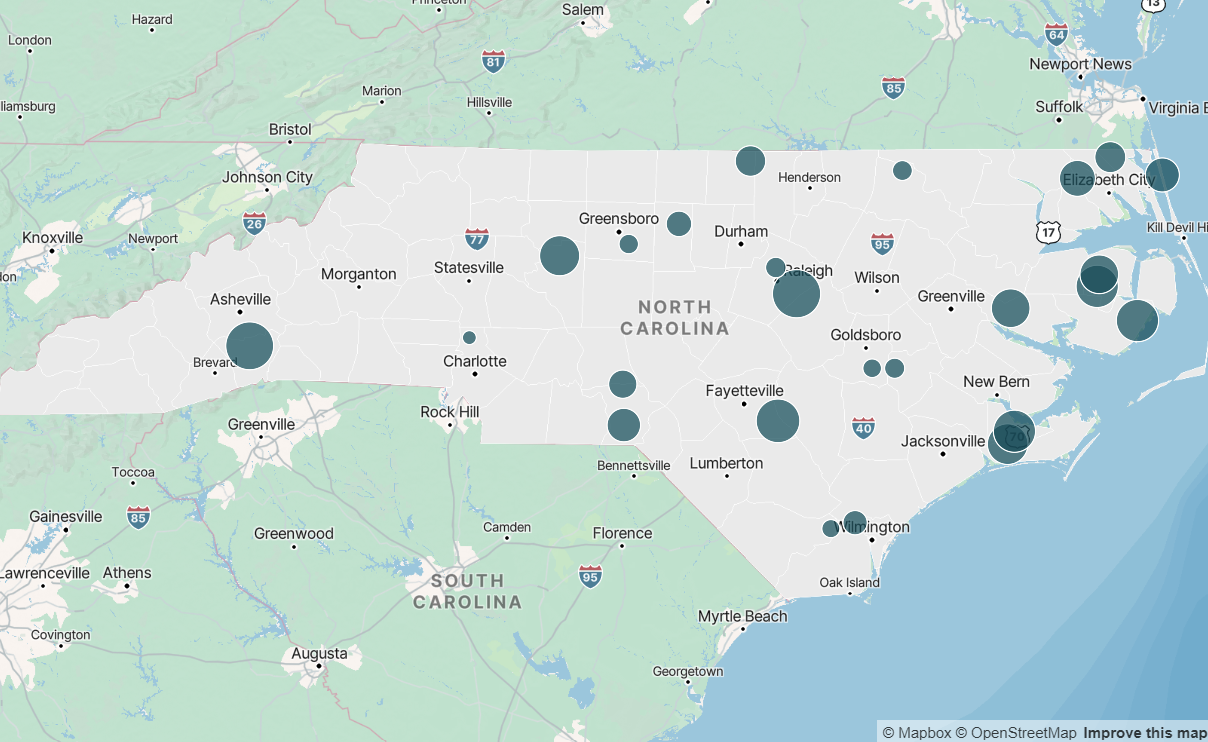

Point map with circle sizes proportional to values — Points sized by value

Popups & Tooltips

Both add_fill_layer() and add_circle_layer() support interactive popups (click) and tooltips (hover).

Parameter	Behavior
`popup`	Shows on click. Pass a column name or HTML string column.
`tooltip`	Shows on hover. Pass a column name.

Styled Popups with Metrics

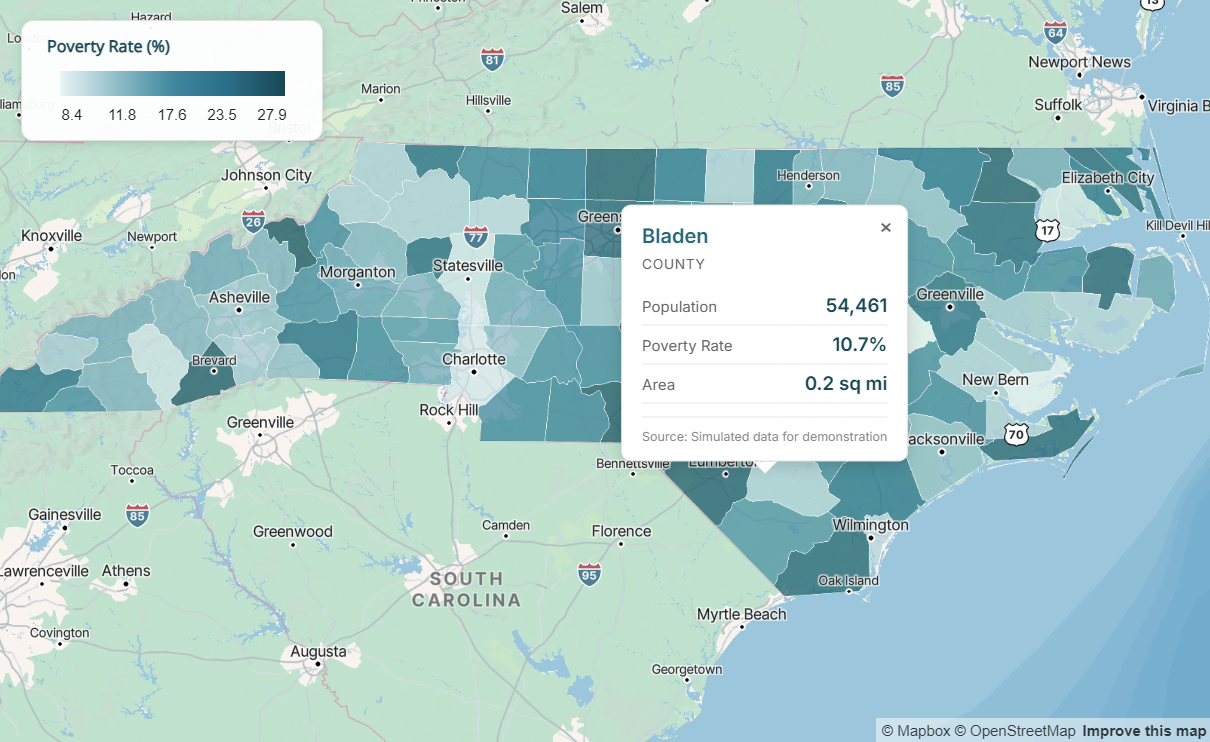

Use cpal_popup_html_metrics() to create rich, branded popup content with key metrics, and add_cpal_popup_style() to style the popup container:

Show code

library(dplyr)

# Add styled popup column to data
# Use rowwise() so metrics are evaluated per-row
nc <- nc |>
  rowwise() |>
  mutate(
    popup_metrics = cpal_popup_html_metrics(
      title = NAME,
      subtitle = "County",
      metrics = c(
        "Population" = scales::comma(population),
        "Poverty Rate" = paste0(poverty_rate, "%"),
        "Area" = paste0(round(AREA, 1), " sq mi")
      ),
      footer = "Source: US Census Bureau"
    )
  ) |>
  ungroup()

# Use in map with popup styling
cpal_mapgl() |>
  add_fill_layer(
    id = "counties",
    source = nc,
    fill_color = color_scale$expression,
    fill_opacity = 0.7,
    popup = "popup_metrics",
    tooltip = "NAME"
  ) |>
  add_cpal_popup_style() |>
  add_legend(
    "Poverty Rate (%)",
    values = get_legend_labels(color_scale, digits = 1),
    colors = get_legend_colors(color_scale),
    type = "continuous",
    style = cpal_legend_style()
  ) |>
  fit_bounds(nc)

Popup Functions

Function	Purpose
`cpal_popup_html_metrics()`	Generate popup HTML with title, subtitle, metrics table, and footer
`add_cpal_popup_style()`	Apply CPAL styling to popup container (background, border, shadow)

Legend Styling

Use cpal_legend_style() to apply consistent CPAL branding to map legends.

cpal_legend_style(
  theme = c("light", "dark"),
  position = c("bottom-right", "bottom-left", "top-right", "top-left"),
  width = 180
)

Argument	Description
`theme`	Match your map theme: `"light"` or `"dark"`
`position`	Legend placement on map
`width`	Legend width in pixels

The style includes CPAL typography (Inter font), appropriate colors, subtle shadow, and proper spacing.

Dark Theme Example

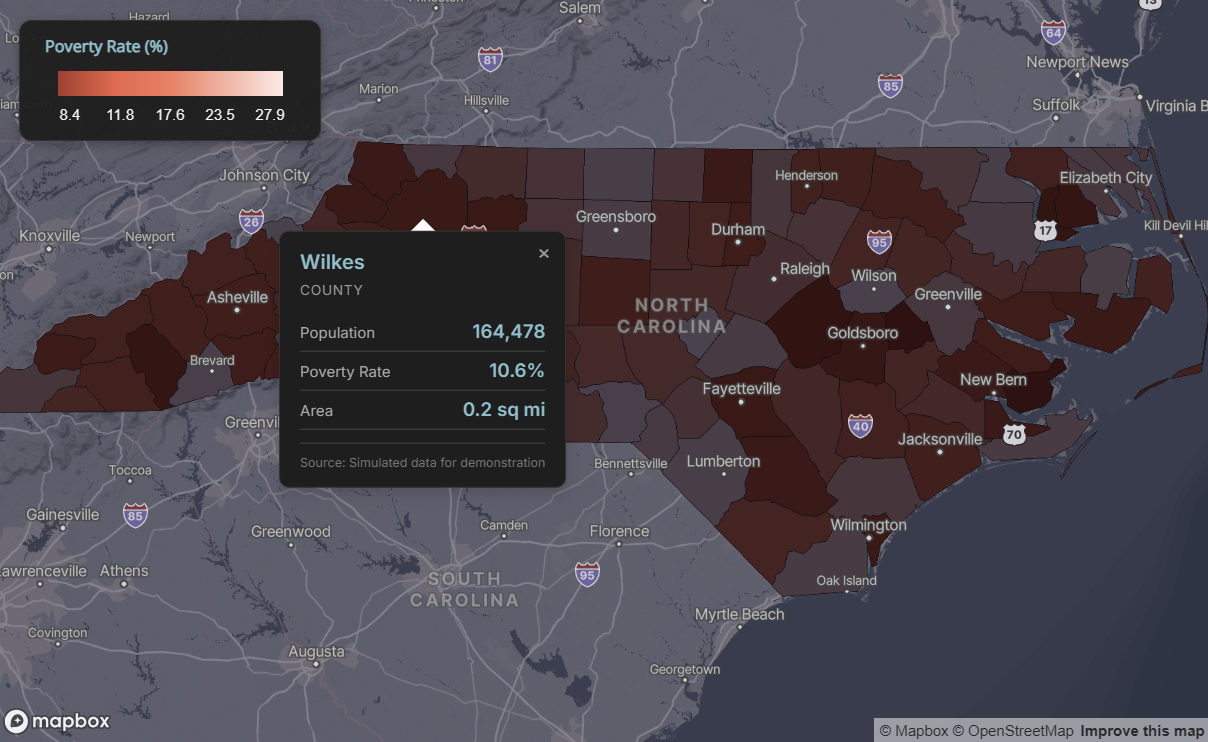

For dark-themed dashboards, use matching dark styles for the map, legend, and popups. The coral palette works well on dark backgrounds. Key tips:

Use fill_opacity = 1.0 to prevent the dark basemap from blending through and muting colors
Reverse the palette so lighter shades represent higher values (more visible on dark backgrounds)

Show code

# Use coral palette, reversed so lighter = higher values
coral_colors <- cpal_colors("coral_seq_5", reverse = TRUE)
color_scale_dark <- interpolate_palette(
  data = nc,
  column = "poverty_rate",
  method = "quantile",
  n = 5,
  colors = coral_colors
)

# Create dark popup content (use rowwise for per-row evaluation)
nc <- nc |>
  rowwise() |>
  mutate(
    popup_dark = cpal_popup_html_metrics(
      title = NAME,
      subtitle = "County",
      metrics = c("Poverty Rate" = paste0(poverty_rate, "%")),
      theme = "dark"
    )
  ) |>
  ungroup()

# Complete dark theme map
cpal_mapgl(theme = "dark") |>
  add_fill_layer(
    id = "poverty",
    source = nc,
    fill_color = color_scale_dark$expression,
    fill_opacity = 1.0,  # Full opacity prevents dark basemap bleed-through
    fill_outline_color = "#333333",
    popup = "popup_dark",
    tooltip = "NAME"
  ) |>
  add_cpal_popup_style(theme = "dark") |>
  add_legend(
    "Poverty Rate (%)",
    values = get_legend_labels(color_scale_dark, digits = 1),
    colors = get_legend_colors(color_scale_dark),
    type = "continuous",
    style = cpal_legend_style(theme = "dark")
  ) |>
  fit_bounds(nc)

Emissive Strength for 3D Lighting

When using mapgl’s 3D features or dark themes, you can enhance layer visibility with emissive strength properties. These make colors appear to emit light, which is especially effective on dark basemaps.

Emissive Properties by Layer Type

Layer Type	Emissive Property	Example
Fill (polygons)	`fill_emissive_strength`	Choropleth maps
Circle (points)	`circle_emissive_strength`	Point maps
Line	`line_emissive_strength`	Route/path maps
Symbol/Icon	`icon_emissive_strength`	Marker icons
Text	`text_emissive_strength`	Labels

Recommended Values

1.0 - Full emissive strength, colors appear vibrant and luminous
0.5 - Subtle glow effect
0.0 - No emissive effect (default)

Example: Dark Theme with Emissive Fill

Show code

cpal_mapgl(theme = "dark") |>
  add_fill_layer(
    id = "regions",
    source = nc,
    fill_color = color_scale$expression,
    fill_opacity = 1.0,
    fill_emissive_strength = 1.0,  # Makes colors glow
    fill_outline_color = "#333333"
  ) |>
  fit_bounds(nc)

Example: Points with Emissive Glow

Show code

cpal_mapgl(theme = "dark") |>
  add_circle_layer(
    id = "locations",
    source = sample_points,
    circle_color = "#E86A50",
    circle_radius = 10,
    circle_emissive_strength = 1.0,  # Points appear to glow
    circle_stroke_color = "#FFFFFF",
    circle_stroke_width = 1
  ) |>
  fit_bounds(nc)

When to Use Emissive Strength

Emissive strength is most impactful on dark theme maps where standard colors can appear muted. On light themes, the effect is less noticeable since the basemap is already bright.

Static Maps with ggplot2

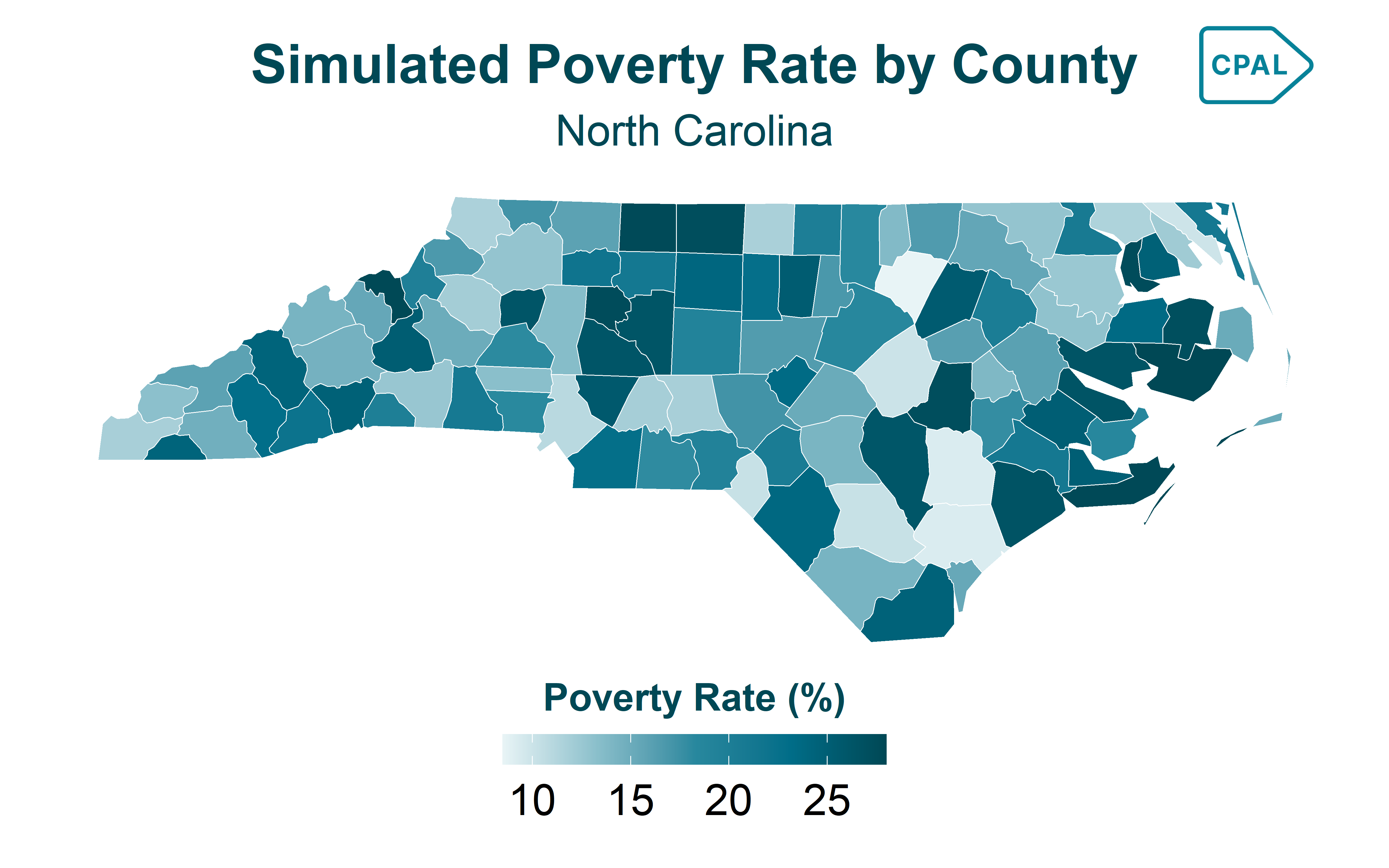

For static maps in reports and presentations, use theme_cpal_map() with ggplot2 and sf.

Choropleth

Show code

p1 <- ggplot(nc) +
  geom_sf(aes(fill = poverty_rate), color = "white", linewidth = 0.2) +
  scale_fill_cpal(palette = "midnight_seq_5", discrete = FALSE) +
  labs(
    title = "Simulated Poverty Rate by County",
    subtitle = "North Carolina",
    fill = "Poverty Rate (%)"
  ) +
  theme_cpal_map() +
  theme(
    legend.title.position = "top",
    legend.title = element_text(hjust = 0.5)
  )

add_cpal_logo(p1)

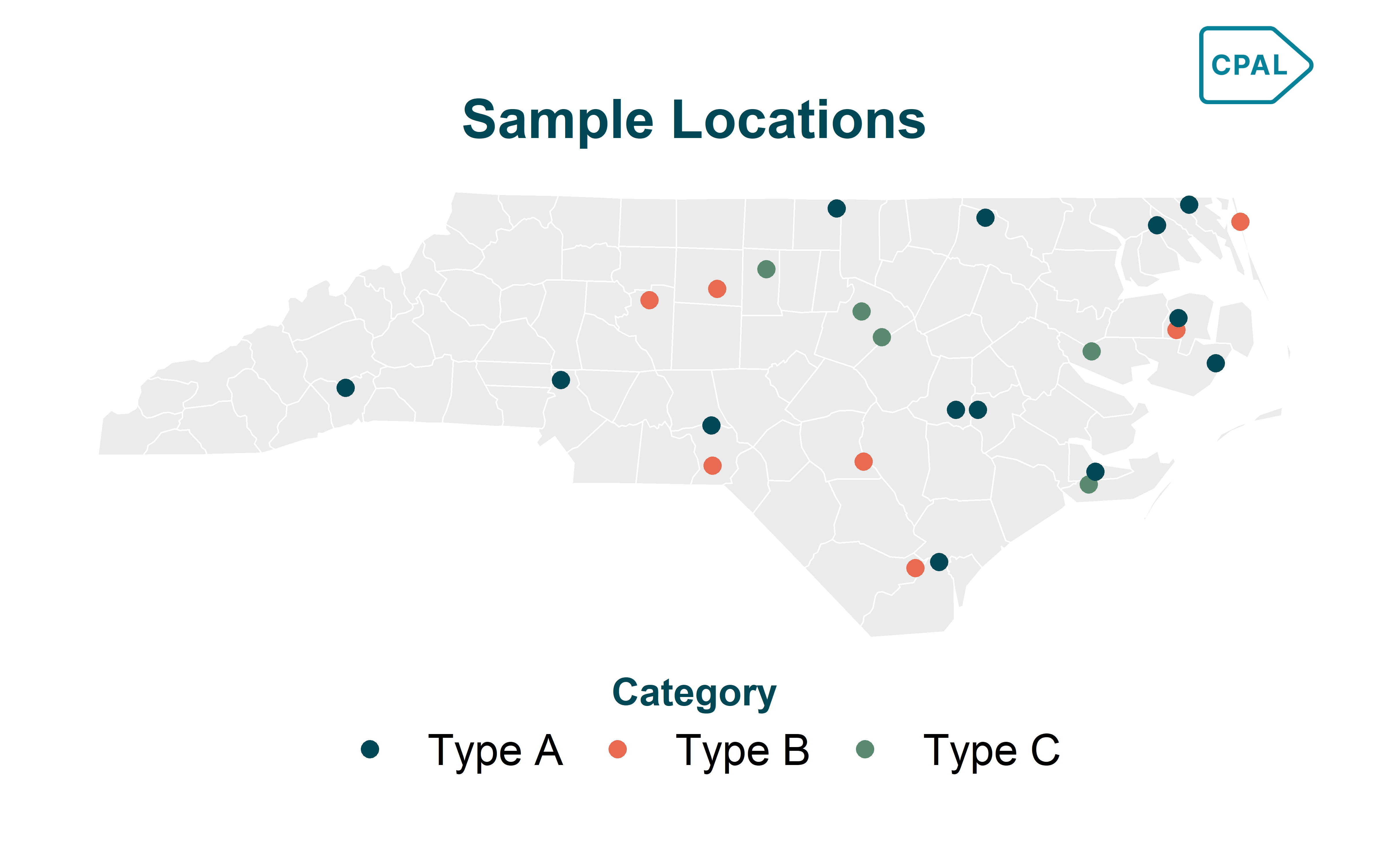

Point Overlay

Show code

p2 <- ggplot() +
  geom_sf(data = nc, fill = "#EBEBEB", color = "white") +
  geom_sf(data = sample_points, aes(color = category), size = 3) +
  scale_color_cpal(palette = "main") +
  labs(
    title = "Sample Locations",
    color = "Category"
  ) +
  theme_cpal_map() +
  theme(
    legend.title.position = "top",
    legend.title = element_text(hjust = 0.5)
  )

add_cpal_logo(p2)

Troubleshooting

Map Not Displaying

Check Mapbox token:

Show code

# Should return your token, not empty string
Sys.getenv("MAPBOX_PUBLIC_TOKEN")

Verify sf data is valid:

Show code

# Check CRS
sf::st_crs(my_data)

# Transform to WGS84 if needed
my_data <- sf::st_transform(my_data, 4326)

Slow Rendering

For large datasets, simplify geometries:

Show code

# Simplify with sf
data_simple <- sf::st_simplify(my_data, dTolerance = 100)

# Or use rmapshaper for better results
data_simple <- rmapshaper::ms_simplify(my_data, keep = 0.1)

Colors Not Showing

Ensure you’re passing the expression from interpolate_palette():

Show code

# Correct - use $expression
fill_color = color_scale$expression

# Incorrect - don't pass the whole object
fill_color = color_scale

Function Reference

Function	Purpose
`cpal_mapgl()`	Initialize CPAL-themed Mapbox GL map
`cpal_legend_style()`	Get styled legend options for `add_legend()`
`cpal_popup_html_metrics()`	Generate popup HTML with metrics
`add_cpal_popup_style()`	Apply CPAL styling to popup container

Next Steps

Colors & Palettes - Complete color system documentation
Themes & Styling - ggplot2 theme customization
mapgl Documentation - Full mapgl package reference
